COLD FORGING ROLLER
800 USD ($)/Metric Ton
Product Details:
- Product Type Forging Roller
- Material Steel
- Surface Treatment Electroplating
- Click to view more
X
COLD FORGING ROLLER Price And Quantity
- 800 USD ($)/Metric Ton
- 1 Metric Ton
- 800.00 - 3000.00 USD ($)/Metric Ton
COLD FORGING ROLLER Product Specifications
- Electroplating
- Forging Roller
- Steel
COLD FORGING ROLLER Trade Information
- NINGBO SHANGHAI
- Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)
- 100 Metric Ton Per Day
- 30 Days
- Yes
- Free samples are available
- WOODEN CASE OR WOODEN PALLET
- Asia
- All India
- ISO9001
Product Description
Product Description

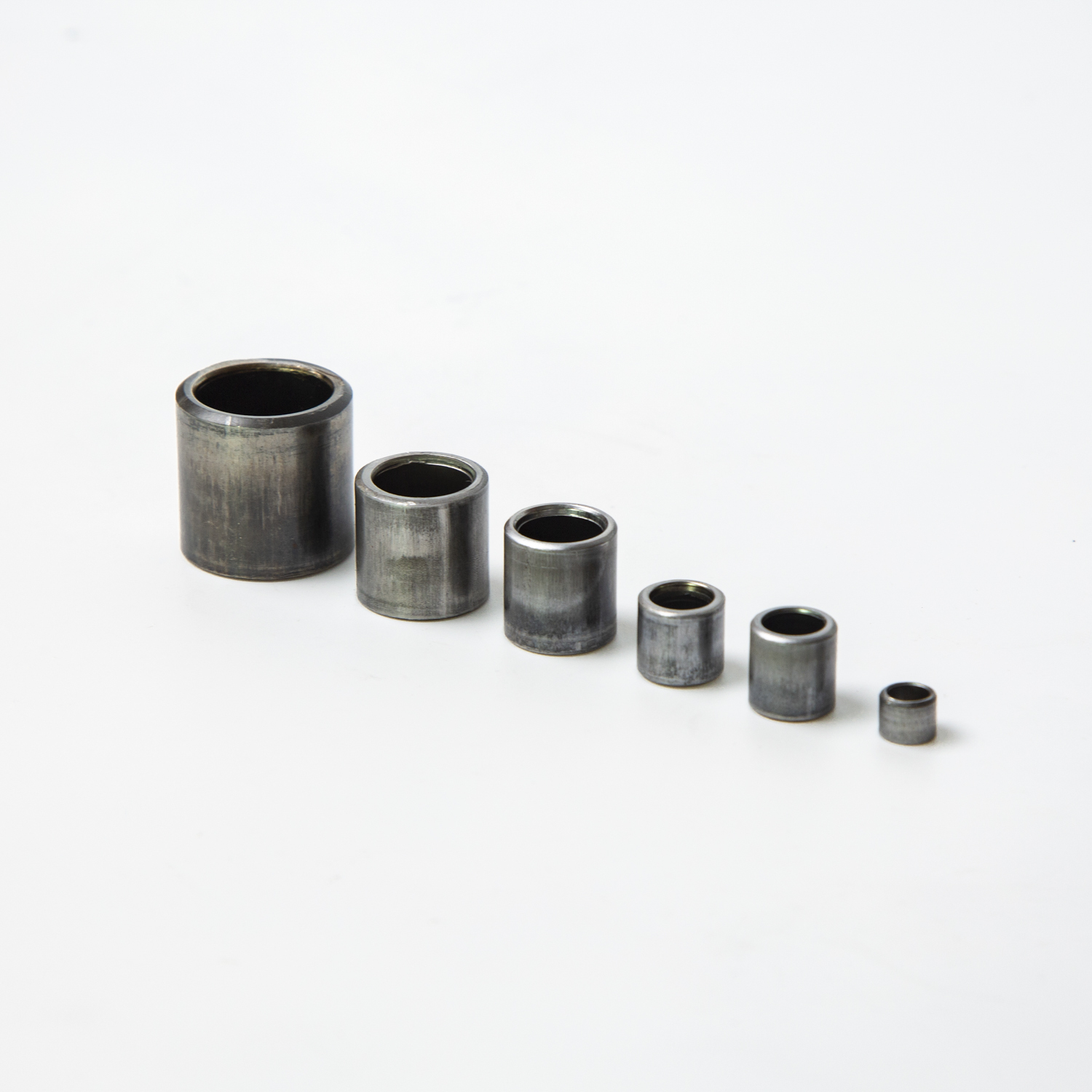

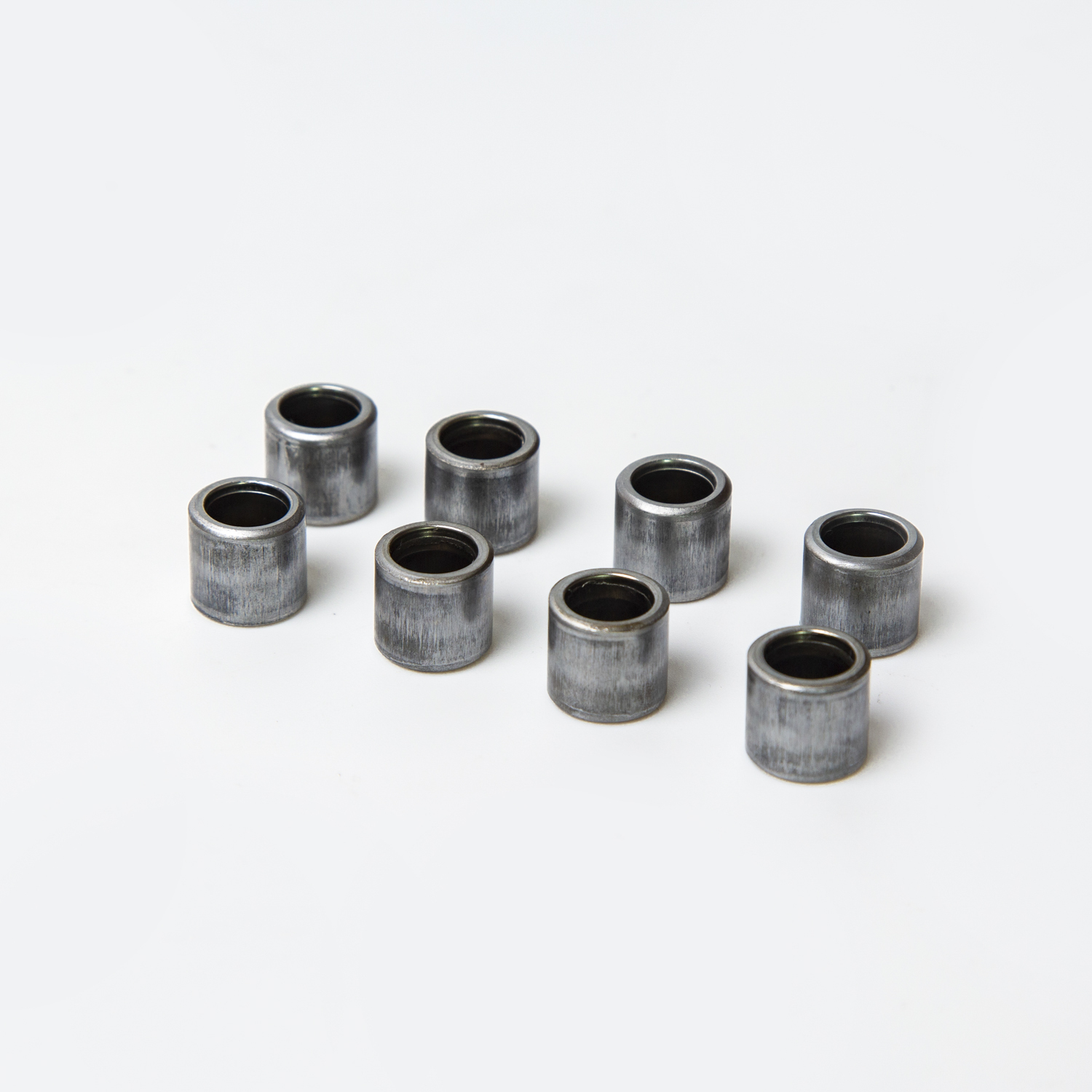

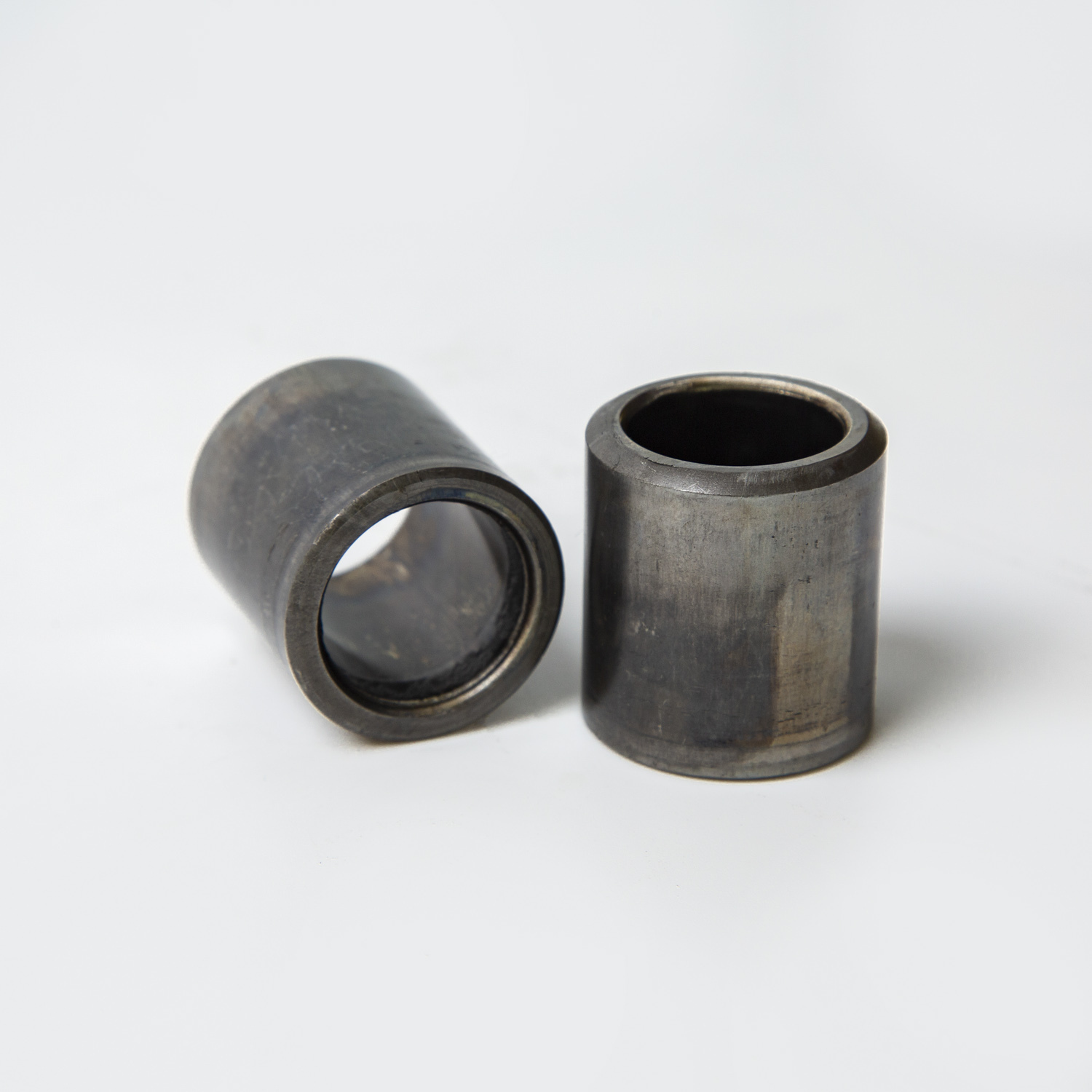

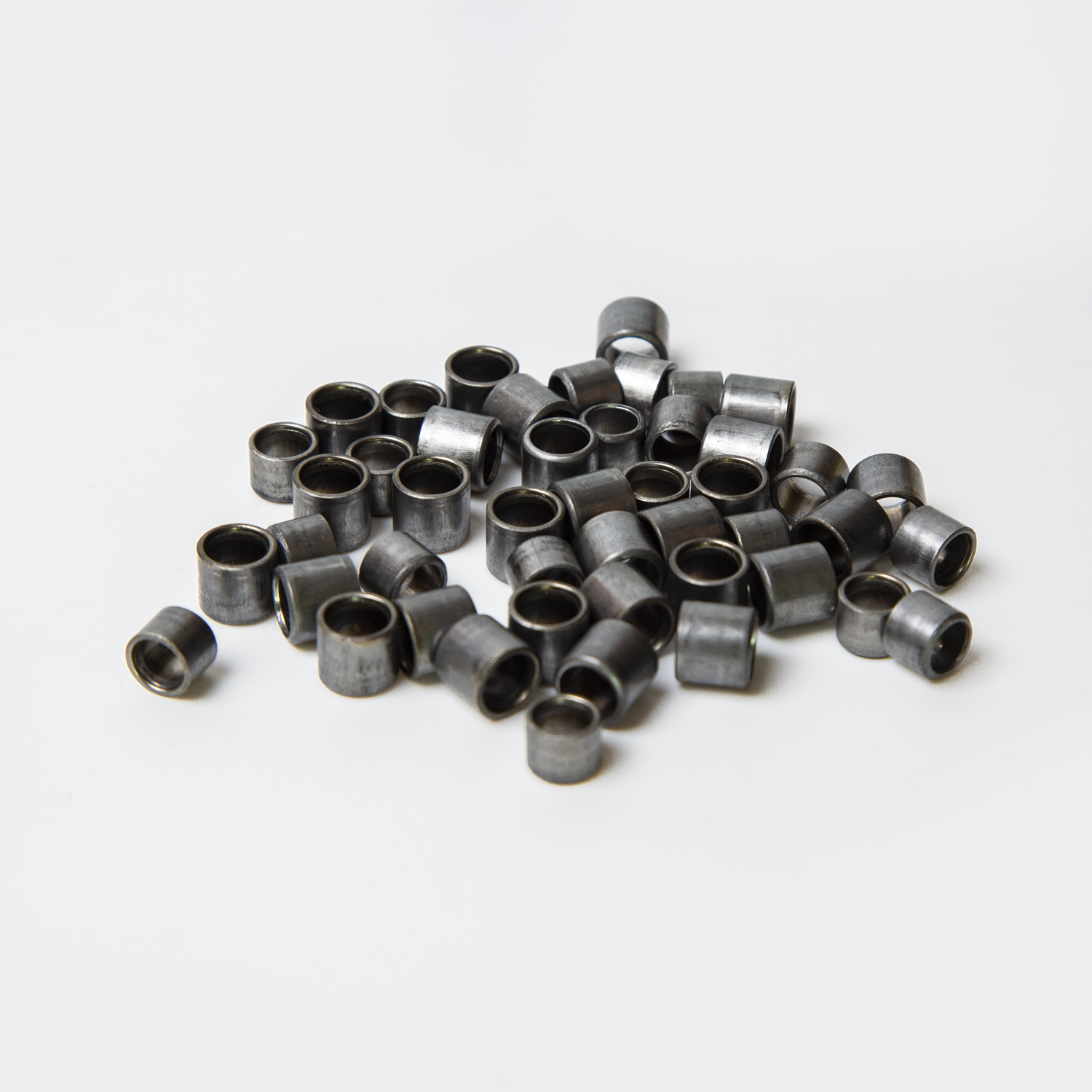

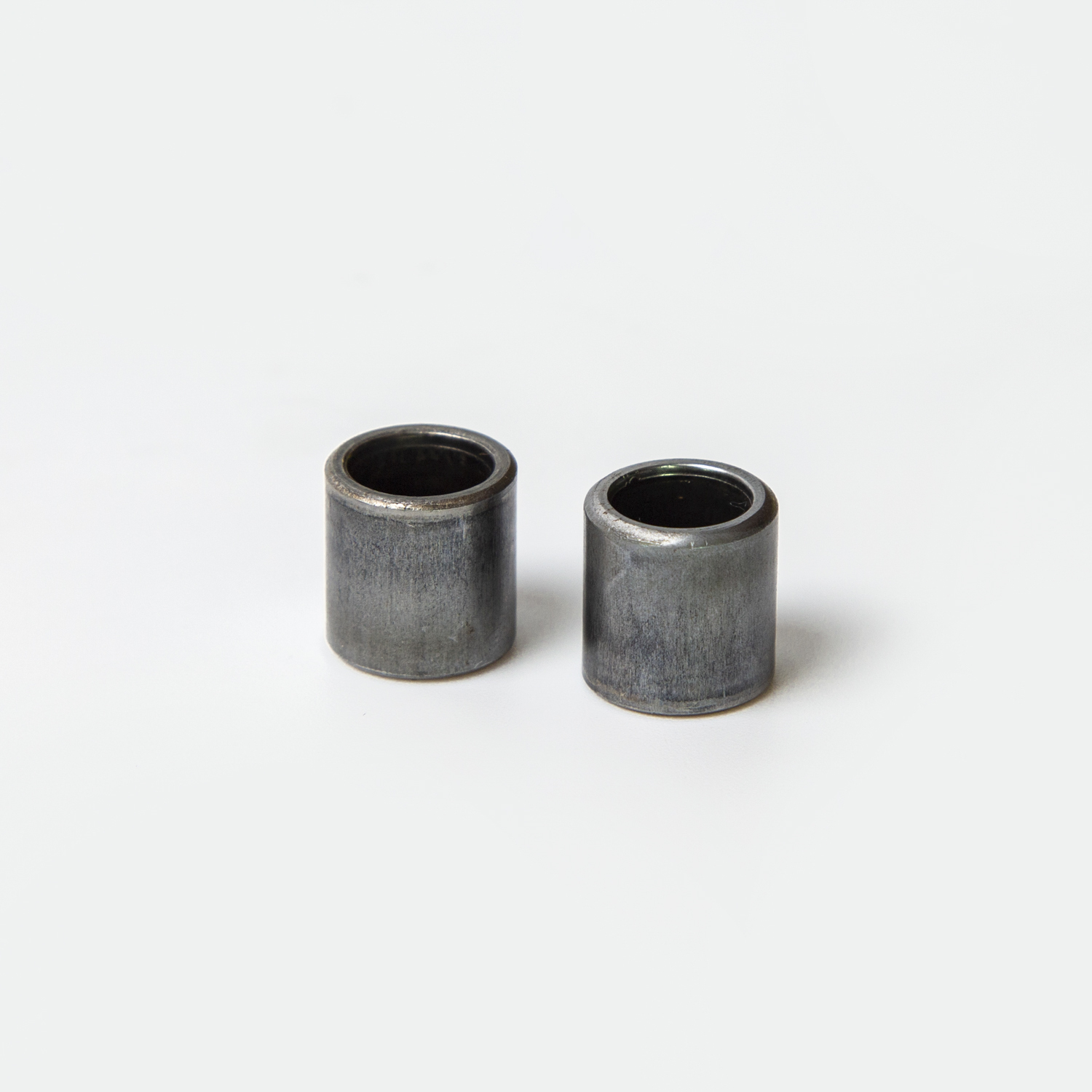

1. Chain rollerDrive chain roller ( same with industrial chain and standard roller chain and roller chain)
Roller for 04B72B 25240, good quality with reasonable price. Material grade is select-able. And heat treatment is available.
| Standard roller dimension list | |||||||
| Item | Outer diameter mm tolerance | Inner diameter mm tolerance | height mm tolerance | Concentricity mm | |||
| 04B | 4.00 | 0.00 | 2.76 | +0.07 | 2.65 | 0.00 | |
| -0.04 | +0.03 | -0.15 | |||||
| 05B | 5.00 | 0.00 | 3.3 | +0.07 | 2.97 | 0.00 | |
| -0.04 | +0.03 | -0.15 | |||||
| 06B | 6.35 | 0.00 | 4.77 | +0.08 | 5.70 | 0.00 | 0.06 |
| -0.05 | +0.03 | -0.20 | |||||
| 408 | 7.72 | 0.00 | 5.16 | +0.06 | 2.30 | 0.00 | 0.08 |
| -0.05 | 0 | -0.10 | |||||
| 41 | 7.77 | 0.00 | 5.08 | +0.11 | 6.20 | 0.00 | 0.08 |
| -0.05 | +0.06 | -0.22 | |||||
| 410 | 7.70 | 0.00 | 5.1 | +0.05 | 3.30 | 0.00 | 0.08 |
| -0.05 | 0 | -0.10 | |||||
| 415 | 7.77 | 0.00 | 5.38 | +0.08 | 4.60 | 0.00 | 0.08 |
| -0.05 | +0.03 | 0.20 | |||||
| 415H | 7.77 | 0.00 | 5.63 | +0.12 | 4.60 | 0.00 | 0.08 |
| -0.05 | +0.07 | 0.20 | |||||
| 420 | 7.77 | 0.00 | 5.63 | +0.08 | 6.20 | 0.00 | 0.08 |
| -0.05 | +0.03 | -0.20 | |||||
| 08A 40 (208A) | 7.95 | 0.00 | 5.63 | +0.11 | 7.80 | 0.00 | 0.08 |
| -0.05 | +0.06 | -0.25 | |||||
| C208AL | 15.88 | 0.00 | 5.63 | +0.15 | 7.60 | 0.00 | 0.12 |
| -0.08 | +0.1 | -0.25 | |||||
| 08B 428 | 8.51 | 0.00 | 6.37 | +0.09 | 7.70 | 0.00 | 0.08 |
| -0.05 | +0.04 | -0.25 | |||||
| 50 10B | 10.16 | 0.00 | 7.03 | +0.12 | 9.40 | 0.00 | 0.08 |
| -0.07 | +0.07 | -0.25 | |||||
| 520 | 10.16 | 0.00 | 7.03 | +0.12 | 6.25 | 0.00 | 0.12 |
| -0.07 | +0.07 | -0.22 | |||||
| 525 | 10.16 | 0.00 | 7.03 | +0.12 | 7.85 | 0.00 | 0.12 |
| -0.07 | +0.07 | -0.20 | |||||
| C210AL | 19.05 | 0.00 | 7.03 | +0.17 | 9.30 | 0.00 | 0.12 |
| -0.05 | +0.12 | -0.25 | |||||
| 60 212A | 11.91 | 0.00 | 8.33 | +0.13 | 12.50 | 0.00 | 0.12 |
| -0.07 | +0.08 | -0.30 | |||||
| C212AL | 22.23 | 0.00 | 8.33 | +0.2 | 12.40 | 0.00 | 0.12 |
| -0.05 | +0.13 | -0.30 | |||||
| 630 | 11.91 | 0.00 | 8.33 | +0.13 | 9.30 | 0.00 | 0.12 |
| -0.07 | +0.08 | -0.30 | |||||
| 12B | 12.07 | 0.00 | 8.1 | +0.12 | 11.65 | 0.00 | 0.12 |
| -0.07 | +0.06 | -0.30 | |||||
| Standard roller dimension list | |||||||
| Item | Outer diameter mm tolerance | Inner diameter mm tolerance | height mm tolerance | Concentricity mm | |||
| 80 216A | 15.88 | 0.00 | 11.1 | +0.16 | 15.70 | 0.00 | 0.12 |
| -0.07 | +0.1 | -0.30 | |||||
| 16B | 15.88 | 0.00 | 11.5 | +0.2 | 16.80 | 0.00 | 0.12 |
| -0.07 | +0.15 | -0.30 | |||||
| C216AL | 28.58 | 0.00 | 11.1 | +0.21 | 15.50 | 0.00 | 0.15 |
| -0.08 | +0.15 | -0.30 | |||||
| C2080H | 28.70 | 0.00 | 16 | +0.1 | 15.60 | 0.00 | 0.15 |
| -0.07 | 0 | -0.25 | |||||
| 100 | 19.05 | 0.00 | 13.6 | +0.22 | 18.85 | 0.00 | 0.15 |
| -0.08 | +0.15 | -0.33 | |||||
| 20B | 19.05 | 0.00 | 14.05 | +0.18 | 19.50 | 0.00 | 0.15 |
| -0.08 | +0.11 | -0.33 | |||||
| 120 | 22.23 | 0.00 | 15.6 | +0.25 | 25.00 | 0.00 | 0.15 |
| -0.08 | +0.17 | -0.33 | |||||
| 24B | 25.40 | 0.00 | 18.69 | +0.26 | 25.20 | 0.00 | 0.20 |
| -0.10 | +0.18 | -0.33 | |||||
| 160 | 25.40 | 0.00 | 18 | +0.26 | 25.00 | 0.00 | 0.15 |
| -0.10 | +0.18 | -0.33 | |||||
| 28B | 27.94 | 0.00 | 20.37 | +0.28 | 30.70 | 0.00 | 0.20 |
| -0.10 | +0.2 | -0.33 | |||||
| 200 | 28.58 | 0.00 | 20 | +0.28 | 31.30 | 0.00 | 0.20 |
| -0.08 | +0.2 | -0.40 | |||||
| 32B | 29.21 | 0.00 | 22.48 | +0.28 | 30.50 | 0.00 | 0.20 |
| -0.10 | +0.2 | -0.40 | |||||
| 08BHP | 6.37 | 0.00 | 4.5 | +0.1 | 16.80 | 0.00 | 0.05 |
| -0.03 | 0 | -0.20 | |||||
| 40HP | 5.63 | 0.00 | 4 | +0.15 | 16.50 | 0.00 | 0.05 |
| -0.03 | +0.05 | -0.18 | |||||
| 50HP | 7.03 | 0.00 | 5.13 | +0.15 | 20.70 | 0.00 | 0.05 |
| -0.03 | +0.05 | -0.18 | |||||
| 10BHP | 7.03 | 0.00 | 5.13 | +0.15 | 19.50 | 0.00 | 0.05 |
| -0.03 | +0.05 | -0.18 | |||||
| 60HP | 8.33 | 0.00 | 6 | +0.15 | 27.40 | 0.00 | 0.06 |
| -0.03 | +0.05 | -0.21 | |||||
| 12BHP | 8.10 | 0.00 | 6 | +0.25 | 22.70 | 0.00 | 0.06 |
| -0.03 | +0.15 | -0.21 | |||||
| 80HP | 11.10 | 0.00 | 8.4 | +0.1 | 32.70 | 0.00 | 0.08 |
| -0.03 | 0 | -0.25 | |||||
| 16BHP | 11.50 | 0.00 | 8.2 | +0.15 | 37.70 | 0.00 | 0.08 |
| -0.03 | +0.05 | -0.25 | |||||
| HP35 | 14.00 | 0.00 | 10.2 | +0.25 | 31.20 | 0.00 | 0.08 |
| -0.03 | +0.15 | -0.18 | |||||
FAQ
Q:Can you produce parts according to our drawing?
A:Yes
Q:Can we visit before co-operation
A:Always welcome, it's great we can know each other well, and know our products well before start our business relationship
Q:Can you do heat treatment for parts
A:Yes
Q:What's your payment terms
A:We accept T/T.
Q:Can you send sample or small orders
A:Yes
